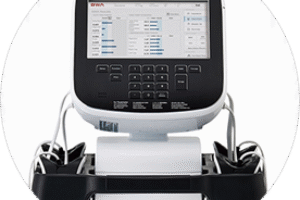

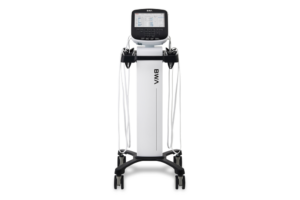

BWA2.0 2nd Generation Body Water Analyzer
The InBody BWA2.0 is the world’s first BIA device to use 3 MHz frequency, delivering exceptional measurement accuracy even for patients with severe edema. It introduces advanced analytical parameters like Multi-Reactance, Multi-Phase Angle, and Segmental Phase Angle, providing deeper insight into body composition, hydration, and cellular health.

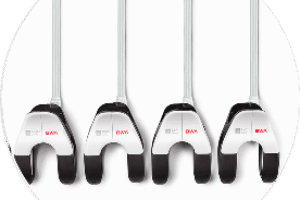

The device features an innovative dual-forceps electrode design that measures impedance from both central and distal areas, improving accuracy for conditions like wrist or ankle swelling. Its electrode indicator ensures precise placement for consistent, reproducible results.
BWA Technology

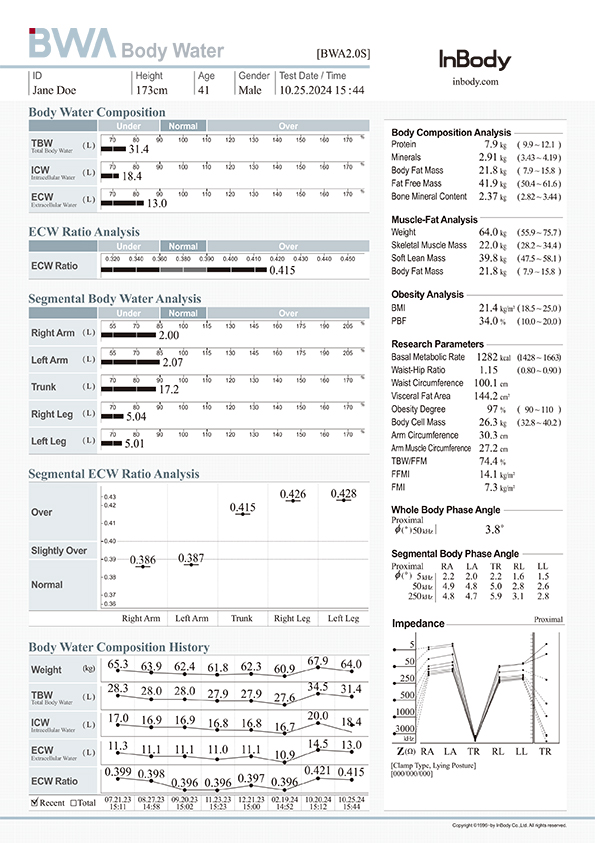

Body Water Composition History
Tracks changes in body water levels over time to evaluate treatment response and recovery progress. This helps professionals make timely adjustments for improved health outcomes.
Notes for Dialysis Patients
Segmental ECW/TBW analysis provides a detailed view of body water distribution, helping clinicians identify abnormal fluid shifts caused by injury, aging, or disease—essential for effective dialysis monitoring and management.

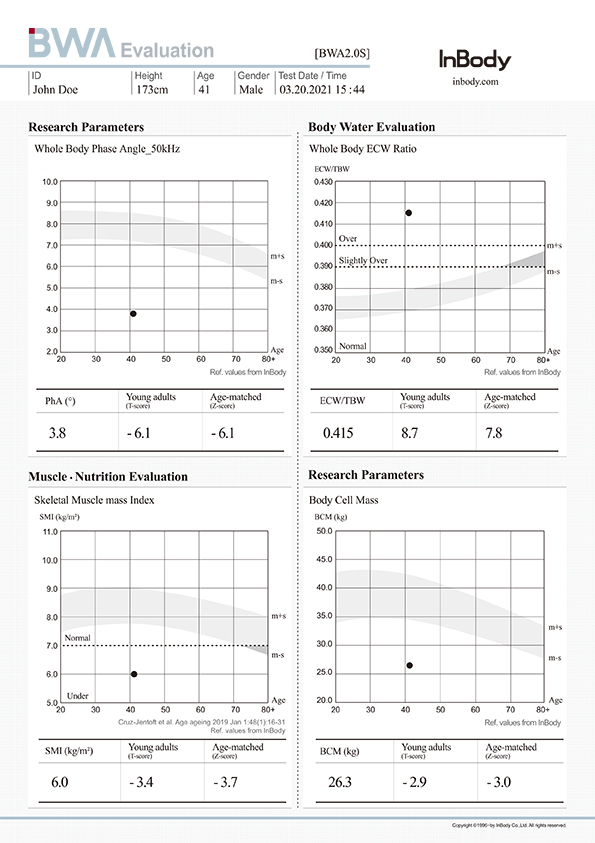

Whole Body Phase Angle
Measures cellular integrity and vitality. Higher phase angle values indicate stronger, healthier cells, helping professionals assess nutrition status and treatment effectiveness.

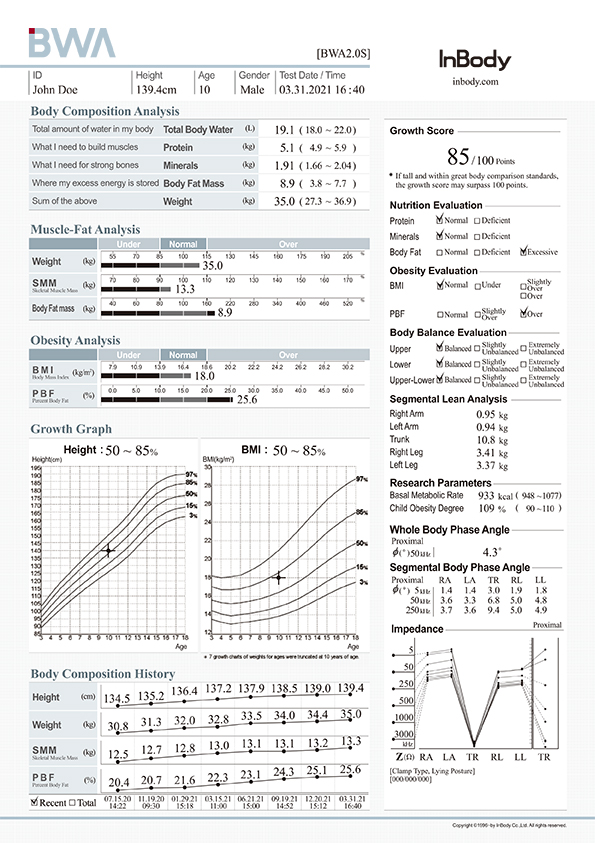

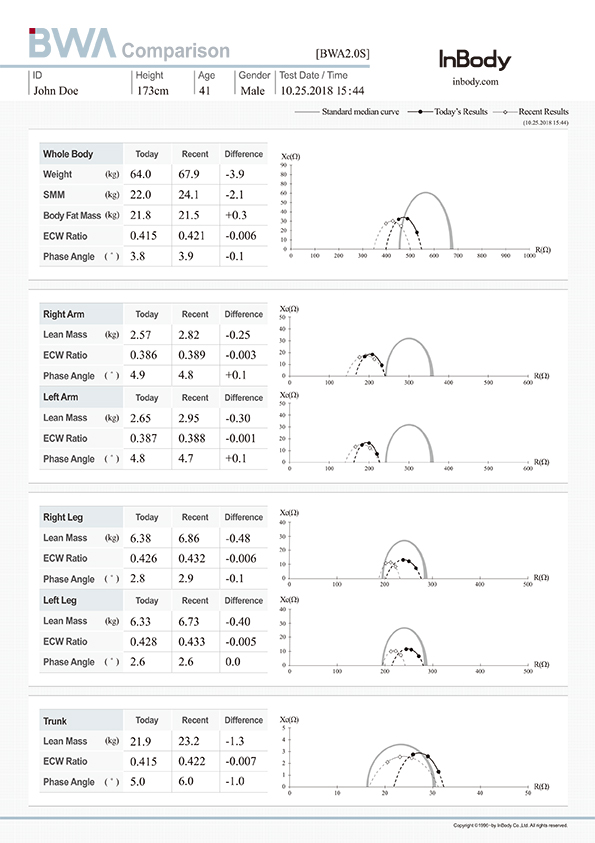

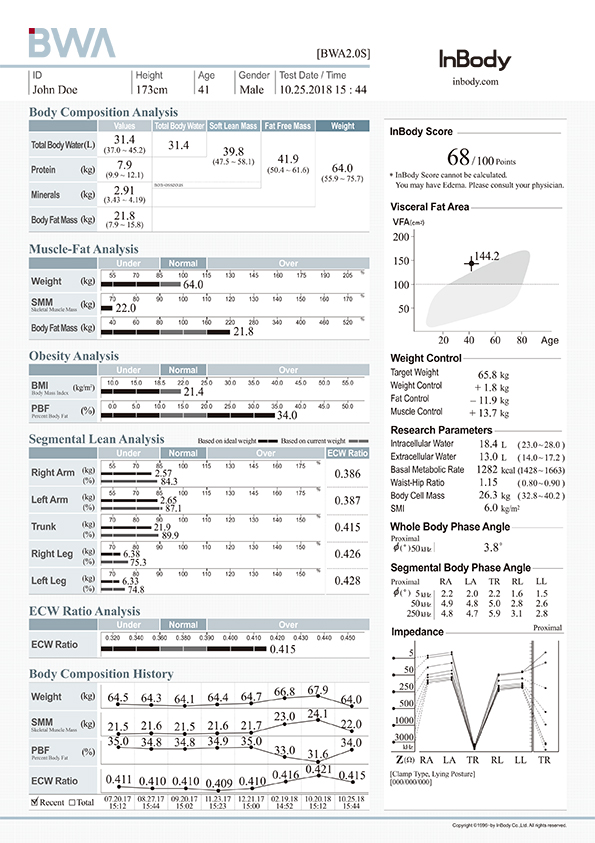

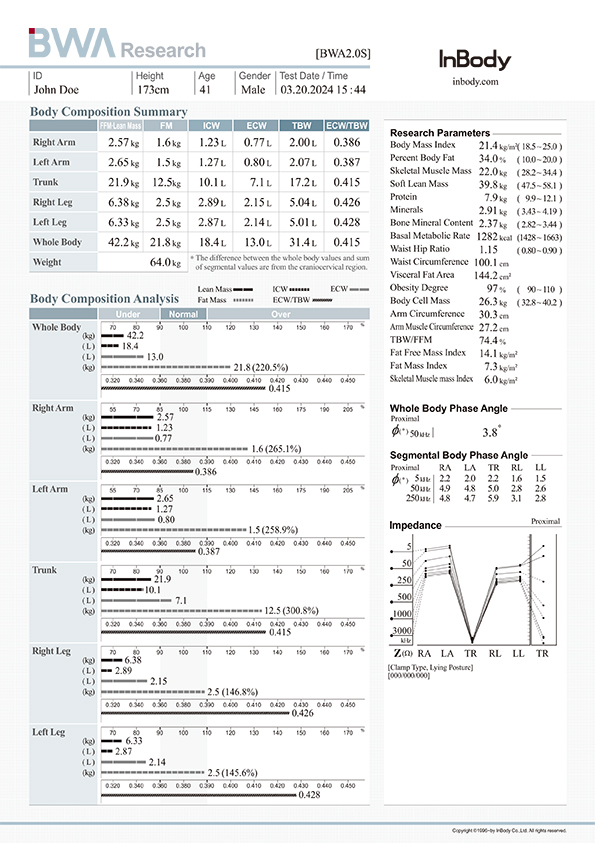

BWA Analysis Report
Monitors segmental water distribution to detect fluid imbalances. Tracks body water composition history to assess patient progress and optimize dialysis outcomes.
Phase Angle analysis supports nutritional assessment and treatment tracking. It helps evaluate cell health and recovery for patients with malnutrition or those undergoing cancer therapy.
Specifications
Height Range
95 – 220 cm (3 ft 1.4 in – 7 ft 2.6 in)
Equipment Weight
2.8 kg (6.17 lb, BWA2.0 only)
Dimensions
-
- 322 (W) × 282 (L) × 81.5 (H): mm
12.7 (W) × 11.1 (L) × 3.2 (H): inch
- 322 (W) × 282 (L) × 81.5 (H): mm
Database
Saves up to 100,000 measurements (When ID is entered)
Frequencies
-
- 5 kHz, 50 kHz, 250 kHz, 500 kHz, 1 MHz, 3 MHz
- Test Duration
About 30 seconds for Medical Mode, about 60 seconds for Research Mode
Weight Range
- 2 – 250kg (4.4 – 551.2 lb)
Age Range
- 3 years and older
Accessories
Height meter, blood pressure meter, grip dynamometer, thermal printer, SD400, USB Thumb DriveStadiometer, Blood pressure monitor, Thermal Printer (TP100), Serial Distributor (SD400), InGrip, BWA2.0 Portable Case, BWA2.0 Adhesive Electrodes and Tape and BWA2.0 Battery Pack from InBody, USB Thumb Drive
Warranty
2 Year Manufacturer’s Warranty
Compatible Printers
Laser/Inkjet PCL 3 or above and SPL
Additional Features
- LookinBody 120 and LookinBody Web Compatible, Touchscreen, Voice Guidance System, InBodyBAND Series Recognition Function, Fingerprint Recognition Function, WiFi/Bluetooth Connectivity, Security Access Code
Measurements
30 Impedance Measurements by Using 6 Different Frequencies (5 kHz, 50 kHz, 250 kHz, 500 kHz, 1 MHz, 3 MHz) at Each of 5 Segments (Right Arm, Left Arm, Trunk, Right Leg and Left Leg)
Standard Outputs
weight, total body water, lean mass, skeletal muscle mass, body fat percentage, partial muscle mass, extracellular water, partial ECW analysis, whole body phase angle
Additional Outputs
InBody score, basal metabolic rate, visceral fat area, weight control, impedance graph
